Hioki IR4057-50 Digital Insulation Tester 1000V

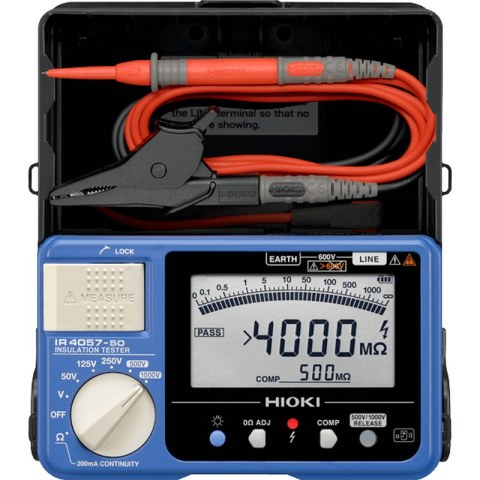

Hioki IR4057-50 Insulation Tester

The Hioki IR4057-50 is a 5-range (50V to 1000V) high-speed digital insulation resistance tester built for fast, reliable testing of electrical installations, motors, machinery and control systems in the field. Its Quick Response Comparator delivers a stable PASS/FAIL judgment in approximately 0.3 seconds, while a digital bar graph makes it easy to watch charging behaviour on capacitive circuits such as solar PV strings. The all-in-one rugged case stores the test leads so the instrument travels as a single unit.

Key Features

• 5 test voltages: 50V, 125V, 250V, 500V and 1000V
• Insulation resistance measurement up to 4000 MΩ
• Quick Response Comparator — stable PASS/FAIL judgment in approx. 0.3 seconds, with a threshold that can be set and stored per voltage range
• Digital bar graph for visualising charging behaviour on capacitive loads such as solar panels
• With the comparator off, the insulation resistance value is displayed continuously after 60 seconds during an ongoing measurement (time-based reading)
• Continuity / protective-conductor test at 200 mA (per EN 61557-4)
• Built-in AC/DC voltage measurement up to 600V to verify the circuit is dead before testing
• EV/HEV continuity checks and safety-conductor resistance measurement per IEC 60364
• Bluetooth-ready: pair with the optional Z3210 Wireless Adapter to transfer data to the free GENNECT Cross app or to Excel
• White-LED backlit LCD; measurement switch operable with the thumb (press for single, lift for continuous)
• CAT III 600V; drop-proof onto concrete from 1 metre
• 500V and 1000V test voltages are manually unlocked before the first measurement to prevent accidental high-voltage output

Fast, Reliable Field Testing

The IR4057-50 is designed to shorten work time during field insulation testing. The comparator gives an immediate pass/fail result with a beep and an LCD indication — turning red on a fail — so you can judge insulation integrity without staring at the display. The bar graph is particularly useful on circuits with a large capacitance component, such as solar panel strings, where it illustrates the charging status as the reading settles.

Applications

Insulation testing of low-voltage wiring, distribution boards and control panels; motor, machinery and equipment insulation checks; EV/HEV and safety-conductor continuity; solar PV insulation verification; and periodic electrical safety inspections and routine maintenance testing in industrial and commercial installations.
