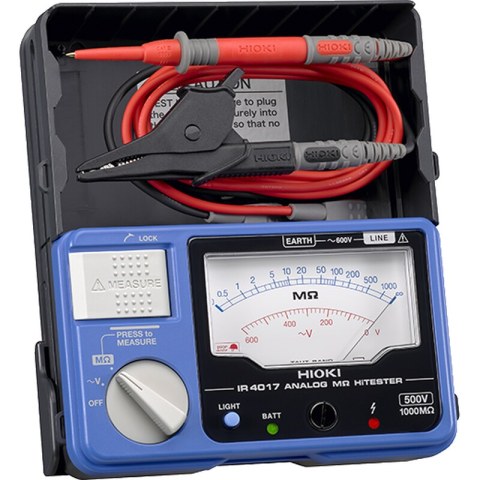

Hioki IR4017-20 Analog Insulation Tester

Hioki IR4017-20 Analog Insulation Tester

The Hioki IR4017-20 is an analog insulation tester offering a single 500V test voltage with an extended 1000MΩ range — ten times the range of the IR4016-20 — for measuring higher insulation-resistance values. Its clear pointer display and drop-proof body suit detailed insulation work.

Key Features

• Single test voltage: 500V DC
• Effective maximum indicated value: 1000 MΩ
• Analog pointer display with clear scale
• AC voltage measurement 0 to 600V
• ±2% of scale length insulation accuracy
• CAT III 600V safety rating, drop-proof, backlight
• LR6 alkaline battery ×4, approx. 20 hours operation

Included Accessories

TEST LEAD L9787, neck strap, LR6 alkaline battery ×4, instruction manual.

Applications

Insulation-resistance testing of 415V-class equipment where higher-resistance readings up to 1000MΩ are expected, using a simple single-voltage analog tester.
