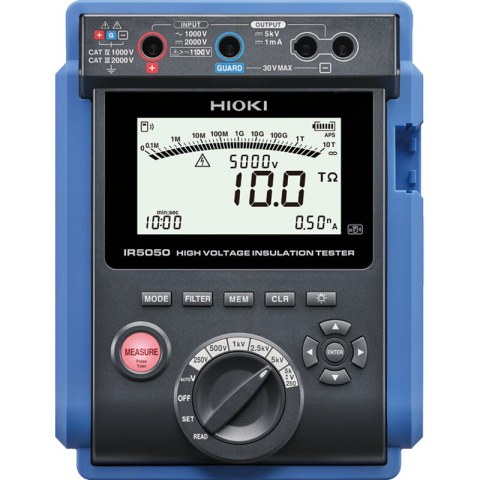

Hioki IR5050 Digital Insulation Tester 5000V

Hioki IR5050 High Voltage Insulation Tester

The IR5050 is designed for insulation testing of extra-high voltage equipment including large motors, high-voltage cables, transformers and switchgear rated above 1000V. With five test voltage settings up to 5000V and measurement capability to 10 TΩ, it meets the most demanding insulation testing requirements in industrial and power utility applications.

Key Features

• 5 test voltage ranges: 250V, 500V, 1kV, 2.5kV, 5kV DC
• Insulation resistance up to 10 TΩ
• Leakage current measurement 0.00 nA to 2.00 mA
• Automatic PI (Polarization Index), DAR (Dielectric Absorption Ratio) and DD (Dielectric Discharge) calculation for predictive maintenance
• Capacitance measurement
• Step and ramp voltage testing to reduce stress on aged or borderline insulation
• CAT IV 1000V / CAT III 2000V safety rating
• Bluetooth wireless via Z3210
• IP40 dustproof

Advanced Insulation Diagnostics

Beyond a single insulation resistance reading, the IR5050 automatically calculates PI (Polarization Index) and DAR (Dielectric Absorption Ratio) — time-based ratios that reveal insulation condition far more reliably than a single reading, especially for large motors, generators and transformers. DD (Dielectric Discharge) testing adds a further diagnostic dimension for large capacitive equipment, and step/ramp voltage modes gradually increase the applied voltage to reduce stress on aged or borderline insulation during testing.

Applications

HV motor and generator testing, high-voltage cable insulation checks, power transformer testing, substation equipment maintenance and testing of equipment rated above standard 415V industrial voltage levels.
