Hioki IR4016-20 Analog Insulation Tester

Hioki IR4016-20 Analog Insulation Tester

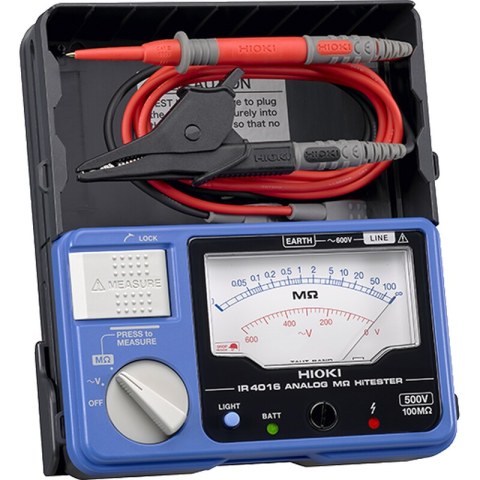

The Hioki IR4016-20 is a compact analog (pointer-type) insulation tester with a single 500V test voltage and a 100MΩ range. Its clear analog scale, drop-proof body and simple operation make it a dependable choice for routine insulation-resistance checks on general electrical equipment.

Key Features

• Single test voltage: 500V DC
• Effective maximum indicated value: 100 MΩ
• Analog pointer display with clear scale
• AC voltage measurement 0 to 600V
• ±2% of scale length insulation accuracy
• CAT III 600V safety rating, drop-proof, backlight
• LR6 alkaline battery ×4, approx. 20 hours operation

Included Accessories

TEST LEAD L9787, neck strap, LR6 alkaline battery ×4, instruction manual.

Applications

Routine insulation-resistance testing of 415V-class equipment and wiring, where a simple, reliable single-voltage analog tester is preferred.
