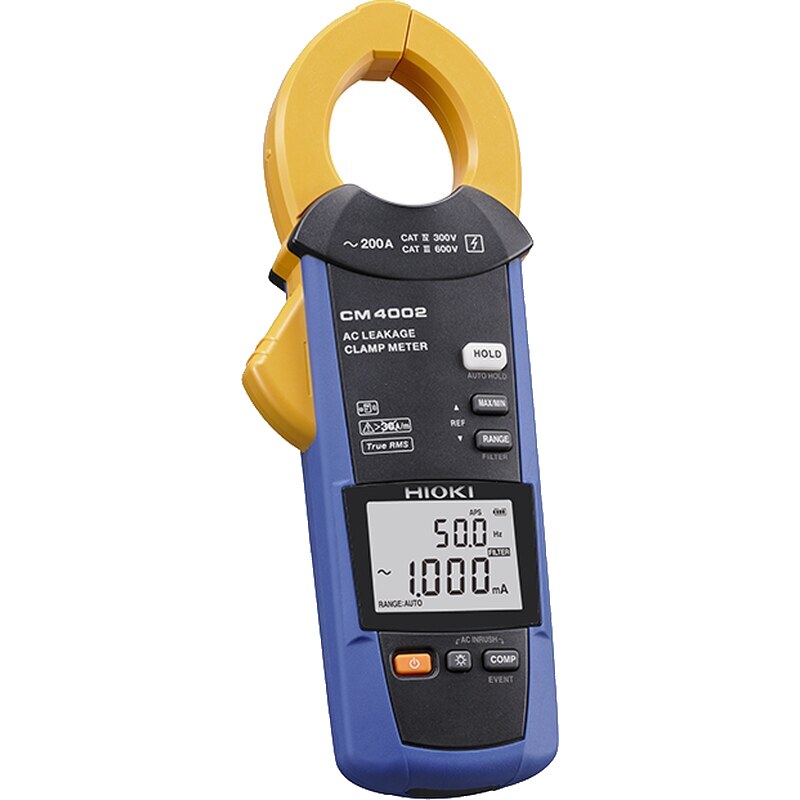

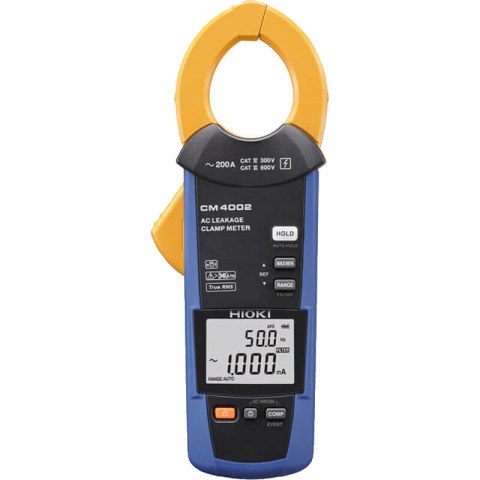

Hioki CM4002 AC Leakage Clampmeter 6mA–200A

Hioki CM4002 AC Leakage Clampmeter 0.06mA–200A

The Hioki CM4002 is a sensitive AC leakage clamp meter measuring from just 0.06mA up to 200A with True RMS accuracy. Its Φ40mm jaw accommodates larger cables, and its higher CAT IV 300V / CAT III 600V rating suits a wider range of installations.

Key Features

• True RMS measurement
• Sensitive range: 0.06mA to 200A AC
• Φ40mm jaw for larger cables
• Frequency measurement up to 2000Hz
• Inrush current measurement and low-pass filter
• CAT IV 300V / CAT III 600V safety rating
• Bluetooth wireless data transfer with the optional Z3210 adapter
• IP40; LR6 alkaline battery ×2, approx. 48 hours operation

Included Accessories

CARRYING CASE C0203, LR6 alkaline battery ×2, instruction manual.

Applications

Sensitive leakage-current detection in panels, equipment and cabling where fine resolution down to 0.06mA and a higher safety category are required.
