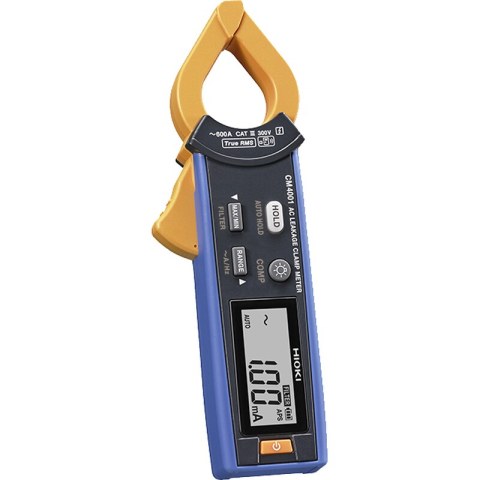

Hioki CM4001 AC Leakage Clampmeter 60mA–600A

Hioki CM4001 AC Leakage Clampmeter 0.6mA–600A

The Hioki CM4001 is a wide-range AC leakage clamp meter that measures from 0.6mA leakage current right up to 600A load current with True RMS accuracy. Its slim Φ24mm jaw and compact single-battery body make it convenient for tracing leakage in panels, equipment and cabling.

Key Features

• True RMS measurement
• Wide range: 0.6mA to 600A AC in one instrument
• Slim Φ24mm jaw
• Frequency measurement up to 999.9Hz
• Inrush current measurement and low-pass filter
• CAT III 300V safety rating
• Bluetooth wireless data transfer with the optional Z3210 adapter
• LR03 alkaline battery ×1, approx. 32 hours operation

Included Accessories

CARRYING CASE, strap, LR03 alkaline battery ×1, instruction manual.

Applications

Leakage-current detection in distribution panels, equipment and cabling, plus general load-current and inrush measurement where both fine leakage resolution and a useful load range are needed.
