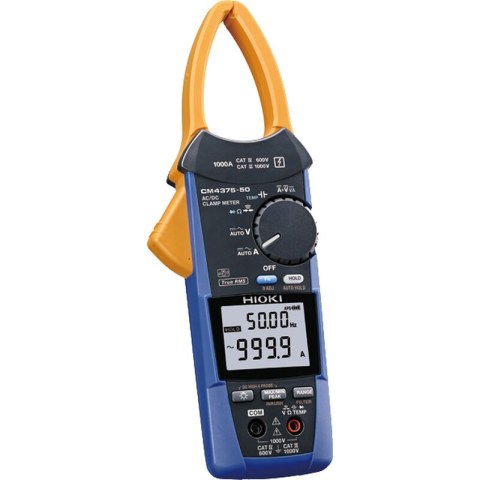

Hioki CM4375-50 Clampmeter 1000A AC/DC

Hioki CM4375-50 AC/DC Clamp Meter

The CM4375-50 bridges the gap between compact everyday clamp meters and large industrial models. Its 1000A AC/DC range and slim Φ34 mm jaw make it ideal for tight switchboard work, while compatibility with the P2010 DC High Voltage Probe enables safe measurement of solar PV strings and other high-voltage DC systems up to 2000V DC.

Key Features

• 1000A AC/DC True RMS clamp meter
• Safe DC high voltage measurement up to 2000V DC with P2010 probe (CAT IV 1000V)
• Slim Φ34 mm jaw for restricted access panels
• Bluetooth wireless via Z3210 for smartphone and PC connectivity
• CAT IV 600V / CAT III 1000V safety rating
• Non-contact voltage detection, inrush current, MAX/MIN/AVG
• IP20/IP54 rated

Applications

Solar PV maintenance, industrial panel inspection, motor current testing, switchgear maintenance and energy management. The P2010 probe compatibility makes this the standard choice for solar installers and O&M teams working on PV systems across India.
