Hioki CM3291 Clampmeter 2000A AC

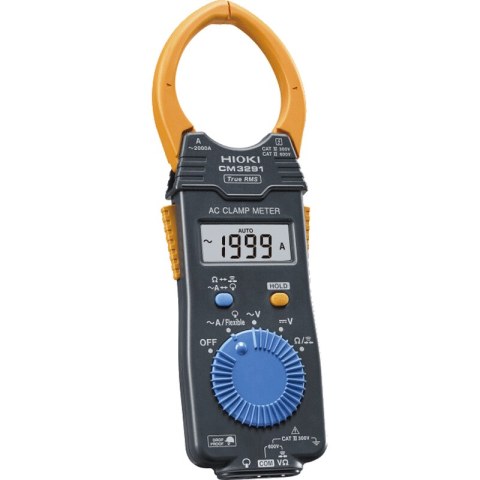

Hioki CM3291 Clamp Meter 2000A AC

The Hioki CM3291 is a True RMS AC clamp meter with a large Φ46mm jaw, combining accurate measurement on distorted waveforms with the capacity to clamp heavy industrial cables. It measures AC current up to 2000A along with AC/DC voltage and resistance, in a rugged, drop-proof coin-battery body.

Key Features

• True RMS measurement for accurate readings on distorted waveforms
• AC current up to 2000A (guaranteed range 4.00A to 1999A)
• Large Φ46mm jaw for thick cables and busbars
• AC and DC voltage up to 600V
• Resistance up to 42 MΩ and continuity check
• V: CAT III 300V / A: CAT IV 300V safety rating
• Drop-proof; CR2032 coin battery, approx. 70 hours operation
• Auto power off and auto range

Included Accessories

TEST LEAD L9208, CARRYING CASE, CR2032 coin battery ×1, instruction manual.

Applications

Load-current measurement on large industrial cables and feeders, and switchgear work with non-linear loads where True RMS accuracy and a wide jaw are both required.
