Hioki CM4371-50 Clampmeter 600A AC/DC

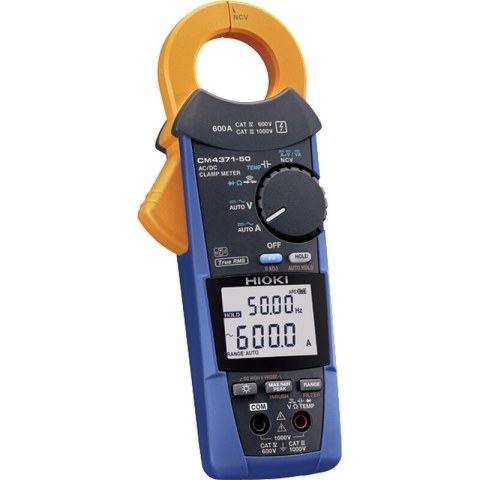

Hioki CM4371-50 AC/DC Clamp Meter

The Hioki CM4371-50 is a high-performance AC/DC clamp meter designed for professional electrical engineers and maintenance technicians working in industrial and commercial environments. With its slim jaw design (Φ33 mm) and True RMS measurement capability, it delivers accurate readings even on distorted waveforms from variable frequency drives, inverters and non-linear loads.

Key Features

• 600A AC/DC current measurement with True RMS accuracy
• Slim jaw design (Φ33 mm) for measuring in crowded cable trays
• Bluetooth wireless connectivity via Z3210 adapter (optional) for data transfer to smartphones and PC
• DC voltage measurement up to 1000V, 2000V with P2010 probe
• CAT IV 600V / CAT III 1000V safety rating for industrial environments
• Temperature measurement -40°C to 400°C
• Inrush current capture for motor startup analysis
• 5000 count display with 5 times/second refresh rate
• IP20/IP54 rated dustproof and waterproof (while in storage)

Applications

Ideal for facility maintenance, industrial panel inspection, motor current measurement, power quality checking and preventive maintenance programmes. The Gennect Cross app compatibility allows you to photograph measurement locations and attach readings to site reports directly from your smartphone.

In the Box

CM4371-50 Clamp Meter, L9300 test leads, C0203 carrying case, LR03 alkaline batteries ×2, instruction manual. Optional: Z3210 Wireless Adapter, P2010 DC High Voltage Probe.
