Hioki PD3129 Phase Detector

Hioki PD3129 Phase Detector

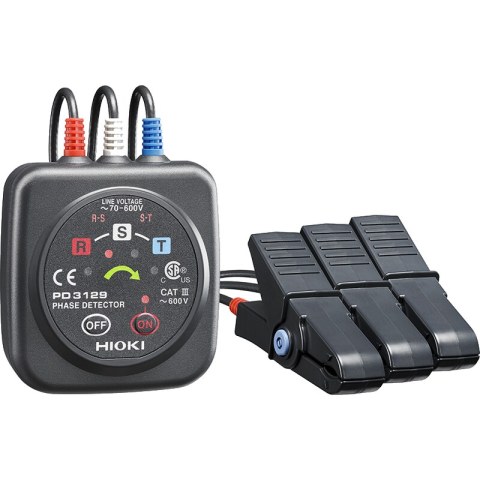

The Hioki PD3129 is a non-contact phase sequence detector that clips directly onto thin insulated conductors (Φ2.4mm to 17mm) to verify three-phase rotation without exposing live metal. With clear LED and buzzer indication it makes motor commissioning and panel checks quick and safe.

Key Features

• Non-contact phase-sequence detection on insulated wiring
• For thin conductors: Φ2.4mm to 17mm
• Voltage range 70 to 600V AC (continuous sine wave)
• Frequency range 45Hz to 66Hz
• Positive: 4 LEDs light clockwise with intermittent buzzer and green arrow
• Negative: 4 LEDs light counter-clockwise with continuous buzzer
• Live-line check and battery-check functions
• CAT IV 600V safety rating; AA (LR6) ×2, up to 200 hours

Included Accessories

Carrying case, strap, AA alkaline battery (LR6) ×2, spiral tube, instruction manual.

Applications

Verifying three-phase rotation during motor commissioning, panel work and maintenance, where clipping onto thin insulated conductors avoids the need to expose live terminals.
