Hioki PD3129-10 Phase Detector

Hioki PD3129-10 Phase Detector

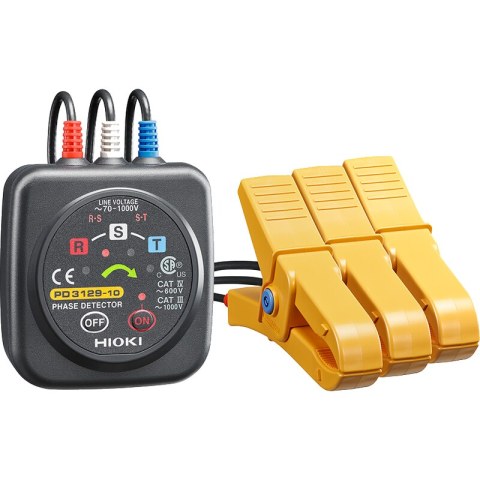

The Hioki PD3129-10 is a non-contact phase sequence detector for thick insulated conductors (Φ7mm to 40mm), with an extended 70–1000V AC voltage range and a higher CAT IV 600V / CAT III 1000V rating. It clips onto covered cables to verify three-phase rotation safely on larger feeders and higher-voltage systems.

Key Features

• Non-contact phase-sequence detection on insulated wiring
• For thick conductors: Φ7mm to 40mm
• Extended voltage range 70 to 1000V AC (continuous sine wave)
• Frequency range 45Hz to 66Hz
• Positive: 4 LEDs light clockwise with intermittent buzzer and green arrow
• Negative: 4 LEDs light counter-clockwise with continuous buzzer
• Live-line check and battery-check functions
• CAT IV 600V / CAT III 1000V safety rating; AA (LR6) ×2, up to 200 hours

Included Accessories

Carrying case, strap, AA alkaline battery (LR6) ×2, spiral tube, instruction manual.

Applications

Verifying three-phase rotation on larger feeders and higher-voltage installations during commissioning and maintenance, where thick conductors and voltages up to 1000V AC are involved.
