Hioki PQ3100 Power Quality Analyzer
Model: PQ3100 | Brand: Hioki | List
Mid-range power quality analyzer, IEC 61000-4-30 Class S compliant. Captures voltage swells/dips/interruptions, frequency fluctuations, harmonics. 4-channel voltage+current. SD card logging, PQ ONE software. Current sensor sold separately.
Price on Request
Please enquire for pricing and availability
Description / Overview

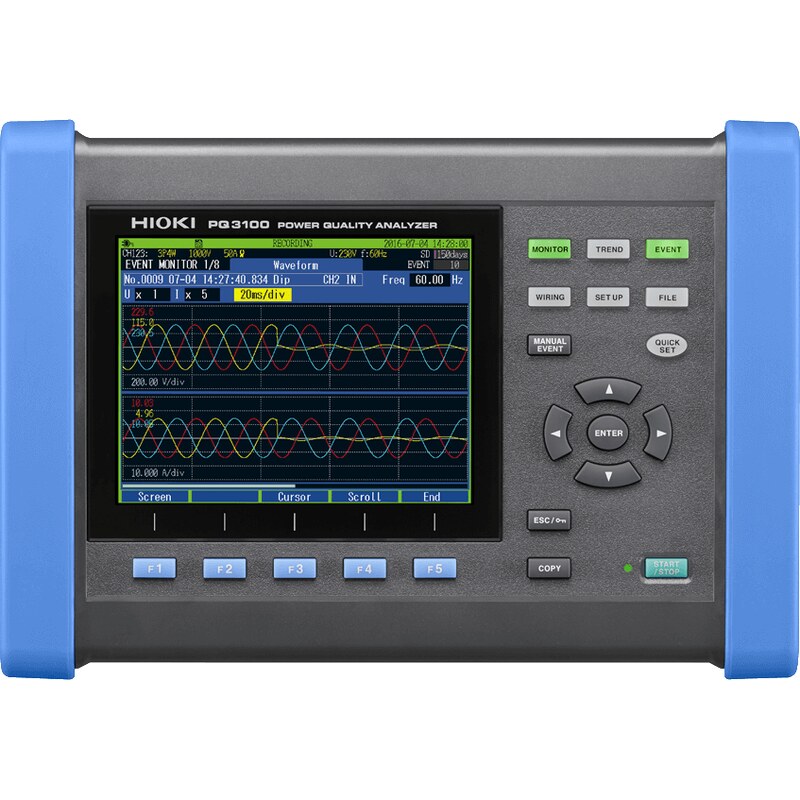

Hioki PQ3100 Power Quality Analyzer
The Hioki PQ3100 is a mid-range power quality analyzer sharing the same core measurement platform as the PQ3198, complying with the IEC 61000-4-30 Class S standard. It provides reliable power quality investigation at a more accessible price point, suited to general field troubleshooting.
Key Features
- IEC 61000-4-30 Class S compliant
- Maximum voltage input: 1000V AC/DC, 2200Vpeak
- Basic measurement accuracy: Voltage ±0.1% of nominal, Current ±0.1% rdg, Power ±0.2% rdg

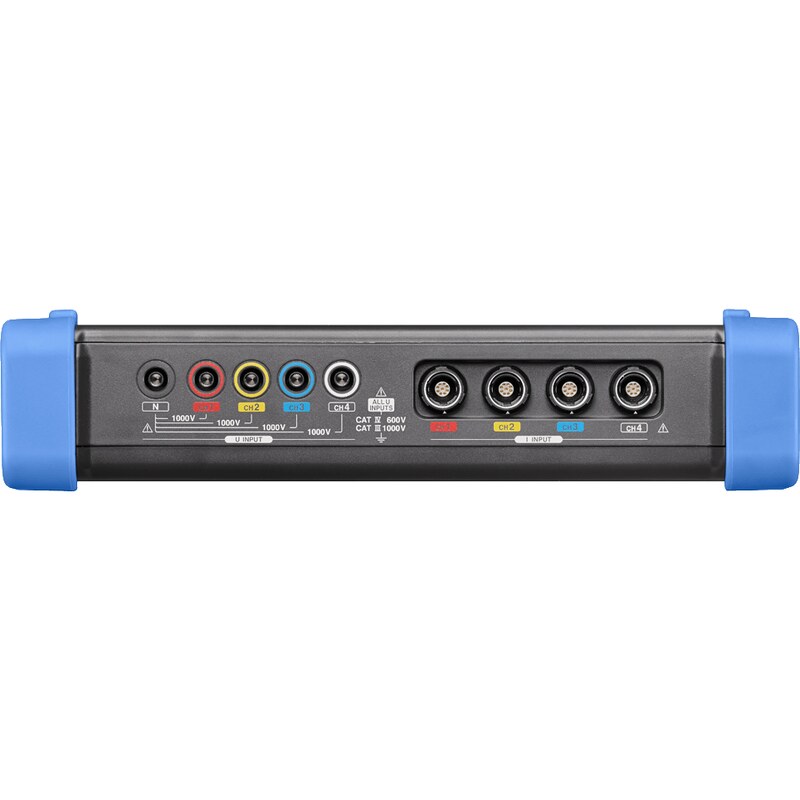

- 4 voltage channels + 4 current channels; supports 1-phase/2-wire through 3-phase/4-wire configurations
- Simultaneous 1/2-cycle RMS recording during voltage swell, dip or inrush events (30 seconds)
- Records up to 9,999 power quality events and up to 1 year of trend data
- SD memory card recording (2GB/8GB), Bluetooth pairing with compatible LR8410-link data loggers
- Includes PQ ONE analytical software
Important: Current Sensor Required

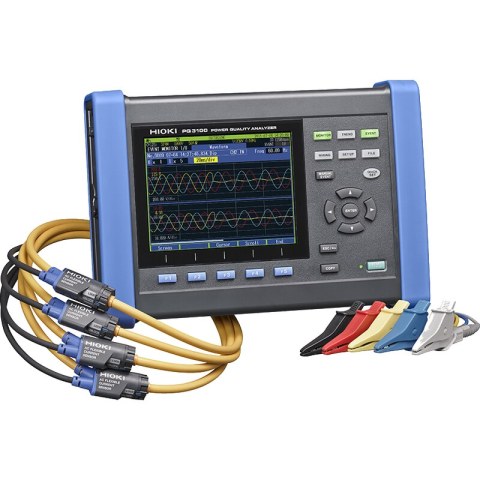

The PQ3100 does not include a current sensor — this must be selected separately based on your current range and access requirements. We stock the CT9667 AC flexible clamp-on current sensor and L1000-05 voltage cord set as standard accessories.
Applications
General power quality troubleshooting and investigation; voltage swell, dip and interruption diagnosis; harmonic analysis; solar and industrial installation power quality checks where Class A precision is not required.
