Hioki DT4253 Digital Multimeter 1000V

Hioki DT4253 Digital Multimeter 1000V

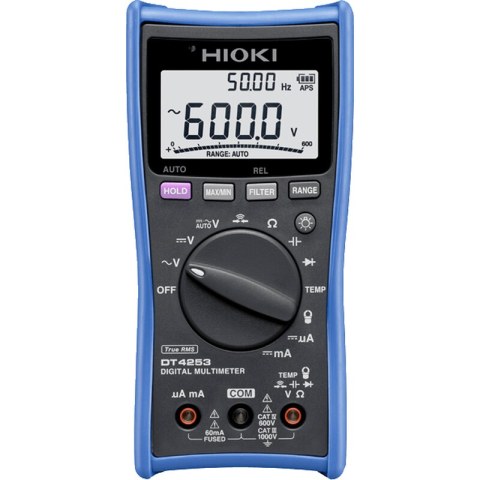

The Hioki DT4253 is a feature-rich general-purpose multimeter tuned for air-conditioning and instrumentation work. Alongside standard True RMS voltage and resistance measurement, it adds a low 60mA DC current range, K-type temperature measurement and a 4-20mA percentage display for reading instrumentation loop signals.

Key Features

• True RMS measurement, 6000-count display with backlight and bar graph
• DC voltage up to 1000V (±0.3% rdg. ±5 dgt.)
• AC voltage (True RMS) up to 1000V
• Low DC current measurement on a 60mA range for instrumentation work
• Temperature measurement -40.0°C to 400.0°C (K-type)
• 4-20mA percentage conversion display for loop signals
• AUTO AC/DC voltage detection
• Resistance up to 60 MΩ, capacitance up to 10 mF, frequency up to 99 kHz
• CAT IV 600V / CAT III 1000V safety rating; drop-proof

Included Accessories

TEST LEAD L9300, LR03 alkaline battery ×4, instruction manual.

Applications

Air-conditioning service, instrumentation and process-signal work (4-20mA loops), and general electrical maintenance where temperature and low-current measurement are useful.
