Hioki CM3281 Clampmeter 2000A AC

Hioki CM3281 Clamp Meter 2000A AC

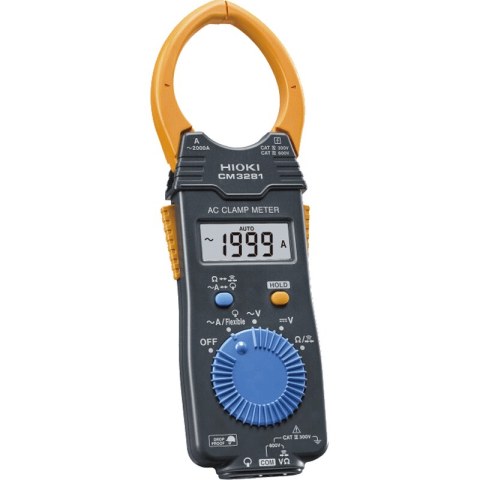

The Hioki CM3281 is a mean-value AC clamp meter with a large Φ46mm jaw, suited to heavy industrial cables and high-current feeders. It measures AC current up to 2000A along with AC/DC voltage and resistance, in a robust, drop-proof coin-battery design.

Key Features

• Mean-value AC measurement
• AC current up to 2000A (guaranteed range 4.00A to 1999A)
• Large Φ46mm jaw for thick cables and busbars
• AC and DC voltage up to 600V
• Resistance up to 42 MΩ and continuity check
• V: CAT III 300V / A: CAT IV 300V safety rating
• Drop-proof; CR2032 coin battery, approx. 70 hours operation
• Auto power off and auto range

Included Accessories

TEST LEAD L9208, CARRYING CASE, CR2032 coin battery ×1, instruction manual.

Applications

Load-current measurement on large industrial cables and feeders, switchgear and distribution work where a 2000A range and wide jaw are required.
