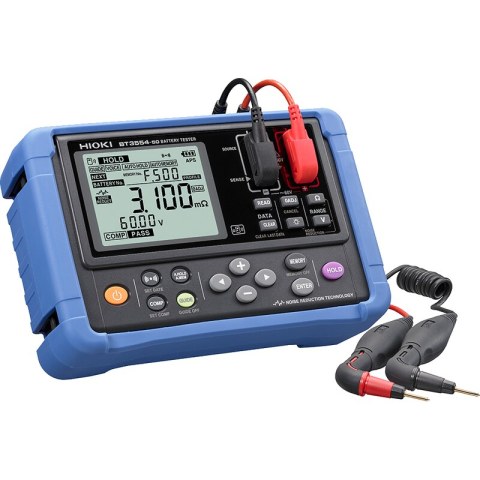

Hioki BT3554-51 Battery Tester (with 9465-10)
The BT3554-51 is the BT3554 battery internal resistance tester supplied with the PIN TYPE LEAD 9465-10 — the standard probe for measuring valve-regulated lead-acid (VRLA) batteries commonly used in UPS systems and telecom backup power. The 4-wire AC resistance measurement method eliminates contact resistance from the measurement, giving accurate cell resistance readings even through aged terminals.
Key Features
- 4-wire AC internal resistance measurement — immune to contact resistance
- Internal resistance range: 3mΩ to 3100mΩ (resolution 1μΩ on lowest range)
- Measurement frequency: 1 kHz ±30Hz (noise-tolerant during UPS operation)
- DC voltage measurement: 6.000V to 60.00V
- Temperature measurement: -10°C to 60°C (when using 9460 temperature probe)
- Memory: up to 6000 data points
- Bluetooth wireless via Z3210 adapter — Gennect Cross app voice guidance for sequential battery bank testing
- USB data transfer to PC
- Comparator PASS/WARNING/FAIL function
- LR6 alkaline batteries ×8, approximately 8.5 hours
- 199 × 132 × 60.6mm, 960g
What is Included
BT3554-51 instrument + PIN TYPE LEAD 9465-10, carrying case C1014, protector Z5041, fuse set Z5050, neck strap, USB cable, alkaline batteries ×8, instruction manual.
Applications
UPS battery bank maintenance, telecom tower battery testing, data centre backup power verification, industrial emergency power system maintenance. The Gennect Cross audio guide walks you through sequential multi-cell battery bank testing without having to look at the instrument screen.
