Hioki 3246-60 Pen-Type Multimeter 600V
Model: 3246-60 | Brand: Hioki | FMI List
Pen-type multimeter that fits in any pocket or tool pouch. DC/AC voltage 600V, resistance 42MΩ, continuity and diode check. CAT IV 300V / CAT III 600V. Test leads fold neatly into the pen body.
(₹4,594 total, incl. GST) | You save: ₹1,298
Description / Overview

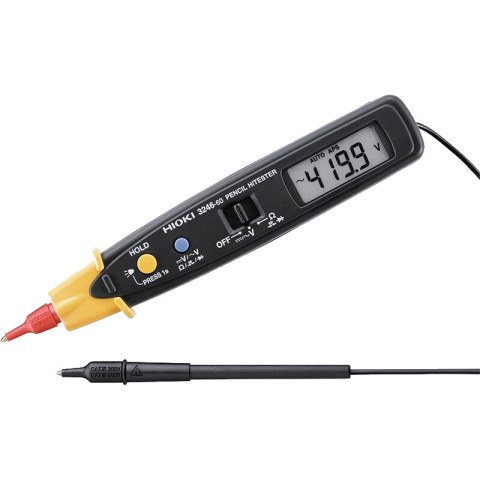

Hioki 3246-60 Pencil HiTester (Pen-Type Multimeter)
The 3246-60 is Hioki's pen-shaped multimeter — the slimmest form factor available for everyday voltage and resistance checking. The test leads fold neatly into the back of the instrument, making it as easy to carry as a pen or marker. At 80g and 30 × 182 × 26.5mm, it slips into any tool pouch, chest pocket or clip-on holder.
Key Features
- Pen/pencil form factor — 30 × 182 × 26.5mm, 80g
- DC voltage: 420mV, 4.200V, 42.00V, 420.0V, 600V (±1.3% accuracy)
- AC voltage: 4.200V, 42.00V, 420.0V, 600V (±2.3% accuracy)
- Resistance: 420Ω, 4.200kΩ, 42.00kΩ, 420.0kΩ, 4.200MΩ, 42.00MΩ (±2.0% accuracy)
- Continuity check: detection level 50Ω ±40Ω or less
- Diode check: judges direction, open terminal voltage 3.4V or less
- CAT IV 300V / CAT III 600V safety rating
- CR2032 coin battery ×1
- Test leads fold into body — no loose accessories to lose
Included Accessories
Sleeves (red and black ×1 each), CR2032 coin battery ×1, instruction manual.
Applications
Quick voltage presence checks, wiring continuity, resistance measurement and diode testing. Ideal as a daily carry tool for electricians, panel builders, service technicians and anyone who needs a multimeter always on hand without bulk.
Specifications
General Specifications
| Parameter | Value |
|---|---|
| Form Factor | Pencil-type, integrated test lead and main body |
| Built-in LED | Illuminates test point at probe tip |
| Power Supply | Coin-type lithium battery (CR2032) x 1 |
| Dimensions | Approx. 30 x 182 x 26.5 mm |
| Weight | Approx. 80 g |
Measurement Specifications
| Parameter | Value |
|---|---|
| DC Voltage | 600.0 mV to 600V, 5 ranges |
| AC Voltage | 4.200V to 600V, 4 ranges (average rectified) |
| Resistance | 420Ω to 42MΩ, 6 ranges |
| Continuity Check | Buzzer sounds at approx. 50Ω or less |
| Diode Test | Available |
Safety Specifications
| Parameter | Value |
|---|---|
| Safety Rating | CAT IV 300V, CAT III 600V |
| Overload Protection | Up to 600V on resistance/continuity functions |
Datasheet
Specifications, compatible accessories and our contact details — generated from this page, kept current automatically.
Request a Quote
Request a Quote for 3246-60
