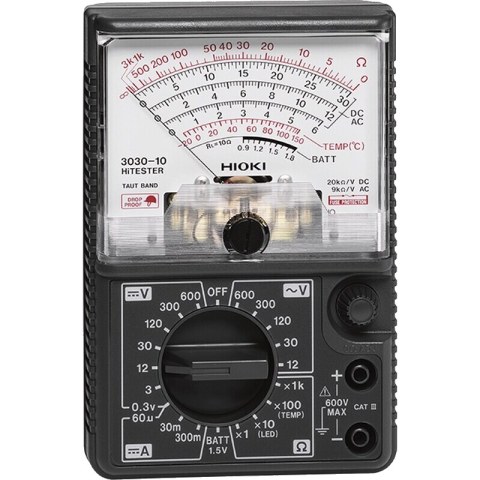

Hioki 3030-10 Analog Multimeter

Hioki 3030-10 Analog Multimeter (HiTester)

The Hioki 3030-10 is a classic analog pointer multimeter — the instrument of choice when you need to observe the direction and rate of change of a measurement rather than just a number. Electricians and maintenance technicians who grew up with analog meters often prefer them for motor checks, battery health assessment and variable signal monitoring where the needle movement tells a story that a digital display cannot.

Key Features

• Analog pointer display for trend monitoring and variable signal observation
• DC voltage: 0.3V, 3V, 12V, 30V, 120V, 300V, 600V (±2.5% accuracy)
• AC voltage: 12V, 30V, 120V, 300V, 600V (±2.5% f.s., ±4% at 12V)
• DC current: 60μA, 30mA, 300mA (±3% accuracy)
• Resistance: 0 to 3kΩ across Rx1, Rx10, Rx100, Rx1k ranges (±3% scale length)
• Battery check: 0.9V to 1.8V (±6% accuracy)
• CAT III 600V safety rating
• R6P manganese battery ×2 power supply
• Compact 95 × 141 × 39mm, 280g

Included Accessories

L9207-30 test leads, Carrying Case 9390, R6P manganese batteries ×2, spare fuse, instruction manual.

Applications

Motor winding checks, battery state assessment, continuity and resistance measurement, voltage presence checks and any application where trend observation is more useful than a precise digital readout.
